AHEX/AHEX-BS Automobiles Power Cable

1 core shield tc

Automotive Cables Product Photos 004

AHEX/AHEX-BS HEV Automobiles Power Cable

A: Low-voltage cables for automobile

H: Heat resistant

E: Polyethylene

X: Cross-linked

BS: Braided shield



AHEX/AHEX-BS Automotive Cable:

Construction: 3 / 5 / 8 / 10 / 12 / 15 / 20 / 25 / 30 / 35 / 40 / 50 ... etc.

Outer Diameter (mm): 2.4 / 3 / 4 / 4.5 / 5 / 5.3 / 6.5 / 7.4 / 7.8 / 8.6 / 9.1 / 10.1 etc.



Color: Green/Yellow/White/Brown/Black/Red etc.



AHEX/AHEX-BS Automotive Cable: Standard/Specification

ES 91104-00



AHEX/AHEX-BS Automotive Cable: Application

Power cable for HEV automobiles



Lead Time:  Quantity(Meters): 1-10000; Time(days): 10

                    Quantity(Meters): >10000;  Time(days): To be negotiated



Customization:

                    Customized logo(Min. Order: 3000 Meters)

                    Customized packaging(Min. Order: 3000 Meters)



Our Automotive JASO D611 Cable Product

AV;AVS;AVSS;CHFUS;CIVUS;AV-AV;ATW-FEP;AEXHF;APEX-BS;AESSXF-BS;HFSSF-T3;

AVX/AVFX/HEBX;AVSSX;AEX;AEXF;AESSXF;AHEX/AHEX-BS;CHFS;AVSSF-ALS;CAVUS;

AHFX;AVXSF;AVUHSF;AEXSF;AEXHSF;Aluminum Cables;AEXHFT;AVSST;HAEXF;CAVS;

AVSSXF-ALS;AESSXF-ALS;AVSS-BS;AVSSXF-BS;AESSXFT;AVSX AVXS;AESSX;AVSSH;

AVUHSF-BS;AEXHF-BS;AVSSXFT;CAVS;AVSSX-TS;AEX-BS;EB;HEB HEDE;HF;HFSS;

AHHEX/AHHEX-BS;AHFX/AHFX-BS;Electric Vehicle Charging Cables ... etc.



Automotive Cables Product Photos 003



The Cable Guide

Quality Policy

Automotive Wires and Cables Product Center

Contact Us

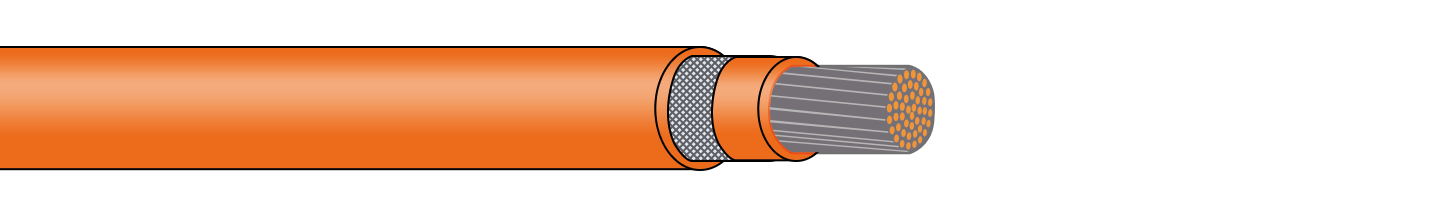

AHEX/AHEX-BS Automotive Cable: Construction

Conductor: Tin plated copper
Insulation: Halogen free Cross-linked polyethylene
Braided: Shield Tin plated copper or annealed copper
Sheath: Lead free polyvinyl chloride



AHEX/AHEX-BS Automotive Cable: Product Features

Rated Voltage: 600 V
Temperature Range: -45°C to 125°C
High voltage cable for EV/HEV
Excellent shield effect and flexibility
Environmentally-friendly materials: Halogen free XLPE insulation, Lead free PVC sheath



AHEX/AHEX-BS Automotive Cable: Technical Data

Construction Conductors Insulation Diameter (mm) Shield Rate Overall Diameter (mm) Conductors Resistance (Ω/km)
Construction (No./mm) Outer Diameter (mm)
3 65/0.26 2.4 3.8 ± 0.25 90 5.3 ± 0.3 5.65
5 65/0.32 3 4.6 ± 0.3 90 6.9 ± 0.4 3.72
8 154/0.26 4 5.6 ± 0.3 90 7.9 ± 0.4 2.43
10 189/0.26 4.5 6.5 ± 0.3 90 9.0 ± 0.4 1.98
12 154/0.32 5 7.0 ± 0.3 90 9.8 ± 0.4 1.52
15 171/0.32 5.3 7.5 ± 0.3 90 10.3 ± 0.45 1.44
20 247/0.32 6.5 8.7 ± 0.3 90 11.5 ± 0.45 1
25 323/0.32 7.4 10.2 ± 0.4 90 13.0 ± 0.5 0.76
30 361/0.32 7.8 10.6 ± 0.4 90 13.4 ± 0.5 0.68
35 437/0.32 8.6 11.4 ± 0.4 90 15.2 ± 0.55 0.54
40 494/0.32 9.1 11.9 ± 0.4 90 15.7 ± 0.55 0.52
50 608/0.32 10.1 13.3 ± 0.45 90 17.1 ± 0.6 0.42
