4 Cores Copper Tape Screened 0.6/1kv Low Voltage Power Cable
CU/XLPE/PVC/CT/PVC (4 Cores)
XLPE Insulated, PVC Bedded, Copper Tape Screened, PVC Sheathed Cable
Application
These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.

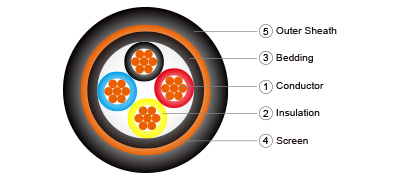

Construction
Conductor: Plain annealed copper, class1 solid or class 2 stranded circular, compacted or sectored.
Insulation: Cross-linked polyethlene (XLPE) compound as per IEC 60502-1.
Insulation Colour:
| Number of Cores | Color Code to IEC 60502-1 | Color Code to BS 5467 |
| 4 | Red, Yellow, Blue and Black | Blue, Brown, Black and Grey |
Assembly: Cores cabled together with PP filler and covered with non-woven tape.
Bedding: Polyvinyl choride (PVC) compound type ST1 (80°C), ST2 (90°C) of IEC 60502-1.
Bedding Colour: Black or other color as per customer request.
Screen: Copper tape.
Outer Sheath: Polyvinyl choride (PVC) compound type ST1 (80°C), ST2 (90°C) of IEC 60502-1.
Outer Sheath Colour: Black or other color as per customer request.
Electrical Characteristics
Recommended rated voltages U0
| Highest system voltage (Um) (kV) |
Rated voltage (U0) (kV) | |
| Categories A and B | Category C | |
| 1,2 | 0,6 | 0,6 |
Routine test voltages
| Rated voltage U0 (kV) | 0,6 |
| Test voltage (kV) | 3,5 |
Maximum conductor temperatures for different types of insulating compound
| Maximum conductor temperature (°C) | |
| Normal operation | Short-circuit (5 s maximum duration) |
| 90 | 250 |
Operating Temperature: -15°C to 90°C
Test Voltage: 3.5 kV for 5 minutes
Reference Standards
Design Specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC60332-1, BS EN60332-1
Installation Reference
Min.Bending Radius (mm): 8 x cable overall diameter
Max.Pulling Tension (N/mm2): 50
Dimension
| Nominal Conductor Area (mm2) |
No.and Diameter of Wires (no./mm) |
Thickness of Insulation (mm) |
Diameter Under Screen (mm) |
Overall Diameter (mm) |
Approx Net Weight (kg/km) |
| 4x1.5 | 7/0.53 | 0.7 | 9.7 | 14.1 | 392 |
| 4x2.5 | 7/0.67 | 0.7 | 10.7 | 15.1 | 460 |
| 4x4 | 7/0.85 | 0.7 | 12 | 16.4 | 559 |
| 4x6 | 7/1.04 | 0.7 | 13.4 | 17.8 | 679 |
| 4x10 | 7/1.35 | 0.7 | 15.6 | 20 | 905 |
| 4x16 | 7/1.70 | 0.7 | 18.2 | 22.6 | 1207 |
| 4x25 | 7/2.14 | 0.9 | 22.3 | 26.7 | 1721 |
| 4x35 | 7/2.52 | 0.9 | 25.1 | 29.5 | 2178 |
| 4x50 | 19/1.78 | 1 | 25.4 | 30 | 2736 |
| 4x70 | 19/2.14 | 1.1 | 29.8 | 34.6 | 3748 |
| 4x95 | 19/2.52 | 1.1 | 33.5 | 39.1 | 5047 |
| 4x120 | 37/2.03 | 1.2 | 37.3 | 43.1 | 6256 |
| 4x150 | 37/2.25 | 1.4 | 42.8 | 49 | 7634 |
| 4x185 | 37/2.52 | 1.6 | 47.4 | 53.8 | 9361 |
| 4x240 | 61/2.25 | 1.7 | 54.7 | 61.5 | 12023 |
| 4x300 | 61/2.52 | 1.8 | 60.6 | 68.2 | 15025 |
