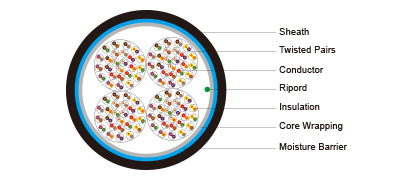

Solid PE Insulated & AP Sheathed (ALPETH) Air Core Cables to ICEA S-85-625

Cable Code

Number

Nominal Sheath Thickness

Nominal Overall

Nominal Weight

of

Inner

Outer

Diameter

kg/km / lbs/kft

Pairs

mm/inch

mm/inch

mm/inch

0.4mm Conductor, 0.7mm Insulated Wire

UE-TP625-2Y2Y(A)2Y-3P04

3

1.2/0.047

1.5/0.059

10.5/0.413

70/47

UE-TP625-2Y2Y(A)2Y-5P04

5

1.2/0.047

1.5/0.059

11.0/0.433

85/57

UE-TP625-2Y2Y(A)2Y-6P04

6

1.2/0.047

1.5/0.059

11.0/0.433

90/60

UE-TP625-2Y2Y(A)2Y-10P04

10

1.2/0.047

1.5/0.059

12.0/0.472

110/74

UE-TP625-2Y2Y(A)2Y-12P04

12

1.2/0.047

1.5/0.059

12.5/0.492

120/81

UE-TP625-2Y2Y(A)2Y-15P04

15

1.2/0.047

1.5/0.059

13.0/0.512

140/94

UE-TP625-2Y2Y(A)2Y-20P04

20

1.2/0.047

1.5/0.059

13.5/0.531

150/101

UE-TP625-2Y2Y(A)2Y-25P04

25

1.2/0.047

1.5/0.059

14.5/0.571

175/118

UE-TP625-2Y2Y(A)2Y-30P04

30

1.2/0.047

1.5/0.059

15.0/0.591

195/131

UE-TP625-2Y2Y(A)2Y-40P04

40

1.2/0.047

1.5/0.059

16.0/0.630

235/158

UE-TP625-2Y2Y(A)2Y-50P04

50

1.2/0.047

1.5/0.059

17.0/0.670

270/181

UE-TP625-2Y2Y(A)2Y-75P04

75

1.2/0.047

1.5/0.059

19.0/0.748

360/241

UE-TP625-2Y2Y(A)2Y-100P04

100

1.2/0.047

1.5/0.059

20.5/0.807

445/299

UE-TP625-2Y2Y(A)2Y-150P04

150

1.2/0.047

1.5/0.059

23.0/0.906

610/410

UE-TP625-2Y2Y(A)2Y-200P04

200

1.2/0.047

1.5/0.059

26.0/1.02

770/517

UE-TP625-2Y2Y(A)2Y-300P04

300

1.2/0.047

1.5/0.059

30.0/1.18

1135/763

UE-TP625-2Y2Y(A)2Y-400P04

400

1.6/0.063

1.8/0.071

34.5/1.36

1455/978

UE-TP625-2Y2Y(A)2Y-600P04

600

1.6/0.063

2.0/0.079

40.5/1.59

2100/1411

UE-TP625-2Y2Y(A)2Y-900P04

900

1.6/0.063

2.0/0.079

48.0/1.89

3070/2063

0.5mm Conductor, 0.9mm Insulated Wire

UE-TP625-2Y2Y(A)2Y-3P05

3

1.2/0.047

1.5/0.059

11.0/0.433

80/54

UE-TP625-2Y2Y(A)2Y-5P05

5

1.2/0.047

1.5/0.059

2.5/0.098

100/67

UE-TP625-2Y2Y(A)2Y-6P05

6

1.2/0.047

1.5/0.059

12.0/0.472

110/74

UE-TP625-2Y2Y(A)2Y-10P05

10

1.2/0.047

1.5/0.059

13.0/0.512

140/94

UE-TP625-2Y2Y(A)2Y-12P05

12

1.2/0.047

1.5/0.059

13.5/0.531

150/101

UE-TP625-2Y2Y(A)2Y-15P05

15

1.2/0.047

1.5/0.059

14.5/0.571

170/114

UE-TP625-2Y2Y(A)2Y-20P05

20

1.2/0.047

1.5/0.059

15.5/0.610

200/134

UE-TP625-2Y2Y(A)2Y-25P05

25

1.2/0.047

1.5/0.059

16.0/0.630

230/155

UE-TP625-2Y2Y(A)2Y-30P05

30

1.2/0.047

1.5/0.059

17.0/0.670

265/178

UE-TP625-2Y2Y(A)2Y-40P05

40

1.2/0.047

1.5/0.059

18.5/0.728

320/215

UE-TP625-2Y2Y(A)2Y-50P05

50

1.2/0.047

1.5/0.059

19.5/0.768

370/249

UE-TP625-2Y2Y(A)2Y-75P05

75

1.2/0.047

1.5/0.059

22.0/0.866

505/339

UE-TP625-2Y2Y(A)2Y-100P05

100

1.2/0.047

1.5/0.059

25.0/0.984

640/430

UE-TP625-2Y2Y(A)2Y-150P05

150

1.2/0.047

1.5/0.059

28.5/1.121

890/598

UE-TP625-2Y2Y(A)2Y-200P05

200

1.6/0.063

1.8/0.071

33.0/1.30

1190/800

UE-TP625-2Y2Y(A)2Y-300P05

300

1.6/0.063

1.8/0.071

38.0/1.50

1700/1142

UE-TP625-2Y2Y(A)2Y-400P05

400

1.6/0.063

2.0/0.079

42.5/1.67

2200/1478

UE-TP625-2Y2Y(A)2Y-600P05

600

1.8/0.079

2.3/0.091

51.5/2.03

3235/2174

UE-TP625-2Y2Y(A)2Y-900P05

900

2.0/0.079

2.5/0.098

61.0/2.40

4705/3162

UE-0.63mm Conductor, 1.15mm Insulated Wire

UE-TP625-2Y2Y(A)2Y-3P063

3

1.2/0.047

1.5/0.059

11.5/0.453

95/64

UE-TP625-2Y2Y(A)2Y-5P063

5

1.2/0.047

1.5/0.059

13.0/0.512

120/81

UE-TP625-2Y2Y(A)2Y-6P063

6

1.2/0.047

1.5/0.059

13.0/0.512

135/91

UE-TP625-2Y2Y(A)2Y-10P063

10

1.2/0.047

1.5/0.059

14.5/0.571

175/118

UE-TP625-2Y2Y(A)2Y-12P063

12

1.2/0.047

1.5/0.059

15.5/0.610

195/131

UE-TP625-2Y2Y(A)2Y-15P063

15

1.2/0.047

1.5/0.059

16.0/0.630

230/155

UE-TP625-2Y2Y(A)2Y-20P063

20

1.2/0.047

1.5/0.059

17.5/0.689

270/181

UE-TP625-2Y2Y(A)2Y-25P063

25

1.2/0.047

1.5/0.059

18.5/0.728

315/212

UE-TP625-2Y2Y(A)2Y-30P063

30

1.2/0.047

1.5/0.059

19.5/0.768

365/245

UE-TP625-2Y2Y(A)2Y-40P063

40

1.2/0.047

1.5/0.059

21.0/0.827

450/302

UE-TP625-2Y2Y(A)2Y-50P063

50

1.2/0.047

1.5/0.059

22.5/0.886

530/356

UE-TP625-2Y2Y(A)2Y-75P063

75

1.2/0.047

1.5/0.059

26.5/1.04

730/491

UE-TP625-2Y2Y(A)2Y-100P063

100

1.2/0.047

1.5/0.059

29.5/1.16

930/625

UE-TP625-2Y2Y(A)2Y-150P063

150

1.6/0.063

1.8/0.071

35.5/1.40

1370/921

UE-TP625-2Y2Y(A)2Y-200P063

200

1.6/0.063

2.0/0.079

39.5/1.56

1775/1193

UE-TP625-2Y2Y(A)2Y-300P063

300

1.6/0.063

2.0/0.079

47.0/1.85

2555/1717

UE-TP625-2Y2Y(A)2Y-400P063

400

1.8/0.079

2.3/0.091

53.5/2.11

3375/2268

UE-TP625-2Y2Y(A)2Y-600P063

600

2.0/0.079

2.5/0.098

63.5/2.50

4930/3313

0.9mm Conductor, 1.5mm Insulated Wire

UE-TP625-2Y2Y(A)2Y-3P09

3

1.2/0.047

1.5/0.059

13.5/0.531

135/91

UE-TP625-2Y2Y(A)2Y-5P09

5

1.2/0.047

1.5/0.059

15.0/0.591

175/118

UE-TP625-2Y2Y(A)2Y-6P09

6

1.2/0.047

1.5/0.059

15.5/0.610

195/131

UE-TP625-2Y2Y(A)2Y-10P09

10

1.2/0.047

1.5/0.059

17.5/0.689

265/178

UE-TP625-2Y2Y(A)2Y-12P09

12

1.2/0.047

1.5/0.059

18.5/0.728

300/202

UE-TP625-2Y2Y(A)2Y-15P09

15

1.2/0.047

1.5/0.059

19.5/0.768

370/249

UE-TP625-2Y2Y(A)2Y-20P09

20

1.2/0.047

1.5/0.059

21.5/0.846

450/302

UE-TP625-2Y2Y(A)2Y-25P09

25

1.2/0.047

1.5/0.059

23.0/0.906

525/353

UE-TP625-2Y2Y(A)2Y-30P09

30

1.2/0.047

1.5/0.059

25.0/0.984

635/427

UE-TP625-2Y2Y(A)2Y-40P09

40

1.2/0.047

1.5/0.059

27.5/1.08

800/538

UE-TP625-2Y2Y(A)2Y-50P09

50

1.2/0.047

1.5/0.059

30.0/1.18

920/618

UE-TP625-2Y2Y(A)2Y-75P09

75

1.6/0.063

1.8/0.071

36.0/1.42

1360/914

UE-TP625-2Y2Y(A)2Y-100P09

100

1.6/0.063

2.0/0.079

40.5/1.59

1765/1186

UE-TP625-2Y2Y(A)2Y-150P09

150

1.6/0.063

2.0/0.079

48.0/1.89

2545/1710

UE-TP625-2Y2Y(A)2Y-200P09

200

1.8/0.071

2.3/0.091

54.5/2.15

3440/2312

UE-TP625-2Y2Y(A)2Y-300P09

300

2.0/0.079

2.5/0.098

64.5/2.54

5010/3367

UE-TP625-2Y2Y(A)2Y-400P09

400

2.0/0.079

2.8/0.110

73.5/2.90

6560/4408
