| Application | The jumper wires are used for interconnection between terminal blocks at main distribution frames (MDF), cross connection cabinets (CCP) and distribution frames or boxes. |
| Standards | IEC 60189-1 IEC 60332-1 UL1581 Sec.VW-1 |

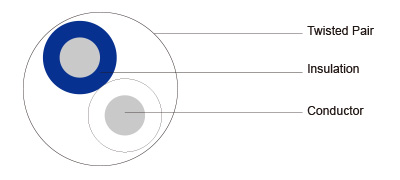

| Construction | |
| Conductors: | Solid annealed tinned copper 0.5/0.6/0.8mm as per IEC 60228 Class 1 |
| Insulation: | PVC |
| Twisted Pairs: | Insulated conductors are twisted into pairs with varying lays to minimize crosstalk |
Electrical Properties
CW 1109
|
Nominal Conductor Diameter |
mm |
0.32 |
0.4 |
0.5 |
0.6 |
0.8 |
1.0 |
7/0.2 |
|
Conductor Size |
mm2 |
0.08 |
0.126 |
0.196 |
0.283 |
0.5 |
0.785 |
0.22 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
234 |
148 |
95 |
65.9 |
36.7 |
23.3 |
89.9 |
|
Minimum Insulation Resistance @500V DC |
MΩ.km |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Minimum Insulation Thickness |
mm |
0.12 |
0.15 |
0.15 |
0.15 |
0.25 |
0.25 |
0.15 |
|
Maximum Insulated Conductor Diameter |
mm |
0.7 |
0.85 |
0.95 |
1.05 |
1.5 |
1.7 |
1.05 |
CW 1257
|
Nominal Conductor Diameter |
mm |
0.4 |
0.5 |
0.6 |
|
Conductor Size |
mm2 |
0.126 |
0.196 |
0.283 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
153 |
98 |
68.9 |
|
Minimum Insulation Resistance @500V DC |
MΩ.km |
50 |
50 |
50 |
|
Minimum Insulation Thickness |
mm |
0.25 |
0.25 |
0.25 |
|
Maximum Insulated Conductor Diameter |
mm |
1.0 |
1.10 |
1.20 |
CW 1423
|
Nominal Conductor Diameter |
mm |
0.5 |
|
Conductor Size |
mm2 |
0.196 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
98 |
|
Minimum Insulation Resistance @500V DC |
MΩ.km |
50 |
|
Minimum Insulation Thickness |
mm |
0.25 |
|
Maximum Insulated Conductor Diameter |
mm |
1.10 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Color Code
CW 1109 - as per IEC 60189-3
CW 1257 & CW 1423:
|
BLUE |
ORANGE |
GREEN |
|
BROWN |
GREY |
WHITE |
|
RED |
BLACK |
PINK |
|
VIOLET |
YELLOW |
TURQUOISE |
Dimensions And Weight
CW 1109
|
Cable Code |
Number of Wires |
Minimum Insulation Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
0.32mm Conductor, 0.7mm Insulated Wire |
||||
|
UE-TP1109-Y-1W032 |
1 |
0.12 |
0.7 |
1.5 |
|
UE-TP1109-Y-2W032 |
2 |
0.12 |
1.3 |
3.0 |
|
0.4mm Conductor, 0.85mm Insulated Wire |
||||
|
UE-TP1109-Y-1W04 |
1 |
0.15 |
0.85 |
1.8 |
|
UE-TP1109-Y-2W04 |
2 |
0.15 |
1.45 |
3.6 |
|
0.5mm Conductor, 0.95mm Insulated Wire |
||||
|
UE-TP1109-Y-1W05 |
1 |
0.15 |
0.95 |
2.2 |
|
UE-TP1109-Y-2W05 |
2 |
0.15 |
1.65 |
4.8 |
|
UE-TP1109-Y-3W05 |
3 |
0.15 |
2.35 |
6.6 |
|
0.6mm Conductor, 1.05mm Insulated Wire |
||||
|
UE-TP1109-Y-1W06 |
1 |
0.15 |
1.05 |
2.8 |
|
UE-TP1109-Y-2W06 |
2 |
0.15 |
1.75 |
5.6 |
|
0.8mm Conductor, 1.5mm Insulated Wire |
||||
|
UE-TP1109-Y-1W08 |
1 |
0.25 |
1.50 |
5.5 |
|
UE-TP1109-Y-2W08 |
2 |
0.25 |
2.50 |
11.0 |
|
1.0mm Conductor, 1.7mm Insulated Wire |
||||
|
UE-TP1109-Y-1W10 |
1 |
0.25 |
1.70 |
6.5 |
|
UE-TP1109-Y-2W10 |
2 |
0.25 |
2.60 |
13.0 |
|
7/0.2mm Conductor, 1.05mm Insulated Wire |
||||
|
UE-TP1109-Y-1W7/02 |
1 |
0.15 |
1.05 |
2.5 |
|
UE-TP1109-Y-2W7/02 |
2 |
0.15 |
2.35 |
5.0 |
CW 1257
|
Cable Code |
Number of Wires |
Minimum Insulation Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
0.4mm Conductor, 1.0mm Insulated Wire |
||||
|
UE-TP1257-Y-1W04 |
1 |
0.25 |
1.0 |
2.0 |
|
UE-TP1257-Y-2W04 |
2 |
0.25 |
1.8 |
4.0 |
|
0.5mm Conductor, 1.1mm Insulated Wire |
||||
|
UE-TP1257-Y-1W05 |
1 |
0.25 |
1.1 |
2.5 |
|
UE-TP1257-Y-2W05 |
2 |
0.25 |
2.0 |
5.0 |
|
0.6mm Conductor, 1.2mm Insulated Wire |
||||
|
UE-TP1257-Y-1W06 |
1 |
0.25 |
1.2 |
2.9 |
|
UE-TP1257-Y-2W06 |
2 |
0.25 |
2.2 |
5.8 |
CW 1423
|
Cable Code |
Number of Wires |
Minimum Insulation Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
0.5mm Conductor, 1.1mm Insulated Wire |
||||
|
UE-TP1423-Y-1W05 |
1 |
0.25 |
1.98 |
2.5 |
|
UE-TP1423-Y-2W05 |
2 |
0.25 |
2.5 |
5.0 |
|
UE-TP1423-Y-3W05 |
3 |
0.25 |
3.0 |
7.5 |
|
UE-TP1423-Y-4W05 |
4 |
0.25 |
3.8 |
10.0 |
|
UE-TP1423-Y-5W05 |
5 |
0.25 |
4.6 |
12.5 |
