J-YY…2X0.6 Bd
| Application | The installation cables are used for telephone and signal transmission for permanent surface or concealed installation in dry and damp rooms, on or under plaster, and on external walls. |
| Standards | DIN VDE 0815/DIN 57815 |

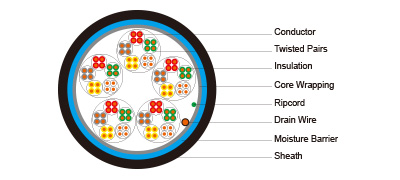

| Construction | |
| Conductors | Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 Class 1 |
| Insulation | PVC YI1 type to DIN VDE 0207-2 |
| Cabling Element | Star Quads |
| Cable Core Assembly | Each 4 wires are stranded into a star quad, the quads are stranded to units and the units are stranded to form the core |
| Core Wrapping | One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing |
| Screen | Laminated aluminium foil is fully enclosing the core with an overlap |
| Sheath | PVC YM1 type to DIN VDE 0207 part 5 |
| Ripcord | Nylon ripcord may be placed parallel to the cores to facilitate sheath removal |
| Drain Wire | Tinned drain wire applied longitudinally to provide continuity of the screen |
Type Codes
J Installation Cable Y Polyvinyl Chloride (PVC) Bd Unit stranding.
Electrical Properties
|
Nominal Conductor Diameter |
mm |
0.6 |
|
VDE CODE |
|
J-YY |
|
Conductor Size |
mm2 |
0.283 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
63 |
|
Minimum Insulation Resistance @500V DC @20°C |
MΩ.km |
100 |
|
Maximum Mutual Capacitance @0.8KHz |
nF/km |
100 |
|
Maximum Capacitance Unbalance @0.8KHz |
|
|
|
K1 max |
pF/100m |
300 |
|
K9-K12 max |
pF/100m |
100 |
|
Maximum Loop Resistance @20°C |
Ω/km |
130 |
|
Maximum Average Attenuation @0.8KHz |
dB/km |
1.7 |
|
Maximum Working Voltage Peak Value |
V |
300 |
|
Nominal Insulation Thickness |
mm |
0.2 |
|
Nominal Insulated Conductor Diameter |
mm |
1.0 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter
Colour Code
Quads
The single core is identified by black ring markings:
|
Side Circuit 1 |
a-wire |
without marking |
|
|
b-wire |
1 mark distance 17mm |
|
Side Circuit 2 |
a-wire |
2 marks distance 34mm |
|
|
b-wire |
2 marks distance 17mm |
Subunits
Basic colours for the wire insulation of the 5 star quads of a basic unit:
|
Quad 1 Red |
Quad 2 Green |
|
|
Quad 3 Grey |
Quad 4 Yellow |
Quad 5 White |
The tracer units are coded with a red helix, all other units by a white binder
Dimensions And Weight
VDE CODE: J-YY…x2x 0.6 Bd
|
Cable Code |
Number of Pairs |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
0.6mm Conductor, 1.0mm Insulted Wires |
|||||
|
UE-TP815J-YY-Bd-2P06 |
2 |
0.2 |
1.0 |
4.5 |
34 |
|
UE-TP815J-YY-Bd-4P06 |
4 |
0.2 |
1.0 |
6.5 |
59 |
|
UE-TP815J-YY-Bd-6P06 |
6 |
0.2 |
1.0 |
7.0 |
74 |
|
UE-TP815J-YY-Bd-10P06 |
10 |
0.2 |
1.0 |
8.5 |
111 |
|
UE-TP815J-YY-Bd-16P06 |
16 |
0.2 |
1.0 |
10.0 |
160 |
|
UE-TP815J-YY-Bd-20P06 |
20 |
0.2 |
1.0 |
11.0 |
200 |
|
UE-TP815J-YY-Bd-24P06 |
24 |
0.2 |
1.0 |
11.5 |
224 |
|
UE-TP815J-YY-Bd-30P06 |
30 |
0.2 |
1.2 |
13.0 |
284 |
|
UE-TP815J-YY-Bd-40P06 |
40 |
0.2 |
1.2 |
15.0 |
364 |
|
UE-TP815J-YY-Bd-50P06 |
50 |
0.2 |
1.2 |
16.5 |
451 |
|
UE-TP815J-YY-Bd-60P06 |
60 |
0.2 |
1.4 |
17.5 |
529 |
|
UE-TP815J-YY-Bd-80P06 |
80 |
0.2 |
1.4 |
20.3 |
700 |
|
UE-TP815J-YY-Bd-100P06 |
100 |
0.2 |
1.4 |
22.3 |
850 |
