| Application | These armoured MV cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free. |
| Standards | IEC 60092-350/351/354/359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

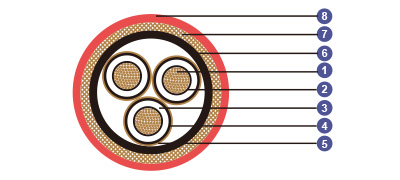

| Construction | |
| Conductors | Class 2 stranded copper conductor. |
| Conductor Screen | Semi-conducting layer (tape/compound). |
| Insulation | XLPE. |
| Insulation Screen | Semi-conducting layer (tape/compound). |
| Metallic Screen | Copper tape |
| Inner Sheath | LSOH (SHF1). |
| Armour | Copper wire braid or galvanized steel wire braid. |
| Outer Sheath | LSOH (SHF1). SHF2 can be offered upon request. |
| Core Identification | Coloured tape shall be inserted under metallic screen. 3core: Red, Yellow, Blue. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 12×OD (single core); 9×OD (three core) Temperature Range: -30℃ ~ +80℃ |
Dimensions and Weight
3.6/6kV
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
|
Inner |
Outer |
|||||
|
3.6/6KV-1C10 |
1×10 |
2.5 |
1.3 |
1.0 |
19.2 |
560 |
|
3.6/6KV-1C16 |
1×16 |
2.5 |
1.3 |
1.0 |
20.1 |
650 |
|
3.6/6KV-1C25 |
1×25 |
2.5 |
1.4 |
1.1 |
21.8 |
800 |
|
3.6/6KV-1C35 |
1×35 |
2.5 |
1.4 |
1.1 |
23.0 |
940 |
|
3.6/6KV-1C50 |
1×50 |
2.5 |
1.5 |
1.2 |
24.7 |
1120 |
|
3.6/6KV-1C70 |
1×70 |
2.5 |
1.6 |
1.2 |
26.7 |
1390 |
|
3.6/6KV-1C95 |
1×95 |
2.5 |
1.6 |
1.3 |
28.8 |
1720 |
|
3.6/6KV-1C120 |
1×120 |
2.5 |
1.7 |
1.3 |
30.6 |
2020 |
|
3.6/6KV-1C150 |
1×150 |
2.5 |
1.8 |
1.3 |
32.4 |
2350 |
|
3.6/6KV-1C185 |
1×185 |
2.5 |
1.8 |
1.4 |
34.4 |
2780 |
|
3.6/6KV-1C240 |
1×240 |
2.6 |
2.0 |
1.5 |
38.4 |
3580 |
|
3.6/6KV-1C300 |
1×300 |
2.8 |
2.1 |
1.6 |
41.6 |
4310 |
|
3.6/6KV-1C400 |
1×400 |
3.0 |
2.2 |
1.7 |
45.8 |
5440 |
|
3.6/6KV-1C500 |
1×500 |
3.2 |
2.4 |
1.7 |
49.3 |
6450 |
|
3.6/6KV-1C630 |
1×630 |
3.2 |
2.5 |
1.9 |
54.1 |
8110 |
|
3.6/6KV-3C10 |
3×10 |
2.5 |
1.9 |
1.4 |
36.3 |
1710 |
|
3.6/6KV-3C16 |
3×16 |
2.5 |
2.0 |
1.5 |
38.8 |
2030 |
|
3.6/6KV-3C25 |
3×25 |
2.5 |
2.1 |
1.6 |
42.0 |
2500 |
|
3.6/6KV-3C35 |
3×35 |
2.5 |
2.2 |
1.6 |
44.8 |
2950 |
|
3.6/6KV-3C50 |
3×50 |
2.5 |
2.3 |
1.7 |
48.0 |
3510 |
|
3.6/6KV-3C70 |
3×70 |
2.5 |
2.5 |
1.8 |
52.5 |
4420 |
|
3.6/6KV-3C95 |
3×95 |
2.5 |
2.6 |
1.9 |
57.0 |
5470 |
|
3.6/6KV-3C120 |
3×120 |
2.5 |
2.8 |
2.0 |
61.0 |
6480 |
|
3.6/6KV-3C150 |
3×150 |
2.5 |
2.9 |
2.1 |
64.9 |
7540 |
|
3.6/6KV-3C185 |
3×185 |
2.5 |
3.1 |
2.2 |
69.3 |
8940 |
|
3.6/6KV-3C240 |
3×240 |
2.6 |
3.3 |
2.4 |
76.4 |
11180 |
6/10kV
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
|
Inner |
Outer |
|||||
|
6/10KV-1C16 |
1×16 |
3.4 |
1.4 |
1.1 |
22.3 |
750 |
|
6/10KV-1C25 |
1×25 |
3.4 |
1.5 |
1.1 |
23.8 |
890 |
|
6/10KV-1C35 |
1×35 |
3.4 |
1.5 |
1.2 |
25.2 |
1040 |
|
6/10KV-1C50 |
1×50 |
3.4 |
1.6 |
1.2 |
26.7 |
1220 |
|
6/10KV-1C70 |
1×70 |
3.4 |
1.6 |
1.2 |
28.5 |
1480 |
|
6/10KV-1C95 |
1×95 |
3.4 |
1.7 |
1.3 |
30.8 |
1830 |
|
6/10KV-1C120 |
1×120 |
3.4 |
1.8 |
1.3 |
32.6 |
2140 |
|
6/10KV-1C150 |
1×150 |
3.4 |
1.8 |
1.4 |
34.4 |
2470 |
|
6/10KV-1C185 |
1×185 |
3.4 |
1.9 |
1.4 |
36.9 |
2990 |
|
6/10KV-1C240 |
1×240 |
3.4 |
2.0 |
1.5 |
40.0 |
3680 |
|
6/10KV-1C300 |
1×300 |
3.4 |
2.1 |
1.6 |
42.8 |
4390 |
|
6/10KV-1C400 |
1×400 |
3.4 |
2.3 |
1.7 |
46.8 |
5510 |
|
6/10KV-1C500 |
1×500 |
3.4 |
2.4 |
1.8 |
49.9 |
6480 |
|
6/10KV-1C630 |
1×630 |
3.4 |
2.5 |
1.9 |
54.5 |
8130 |
|
6/10KV-3C16 |
3×16 |
3.4 |
2.1 |
1.6 |
43.1 |
2350 |
|
6/10KV-3C25 |
3×25 |
3.4 |
2.2 |
1.7 |
46.3 |
2840 |
|
6/10KV-3C35 |
3×35 |
3.4 |
2.3 |
1.7 |
49.1 |
3310 |
|
6/10KV-3C50 |
3×50 |
3.4 |
2.5 |
1.8 |
52.5 |
3910 |
|
6/10KV-3C70 |
3×70 |
3.4 |
2.6 |
1.9 |
56.8 |
4820 |
|
6/10KV-3C95 |
3×95 |
3.4 |
2.8 |
2.0 |
61.4 |
5930 |
|
6/10KV-3C120 |
3×120 |
3.4 |
2.9 |
2.1 |
65.3 |
6940 |
|
6/10KV-3C150 |
3×150 |
3.4 |
3.1 |
2.2 |
69.3 |
8050 |
|
6/10KV-3C185 |
3×185 |
3.4 |
3.2 |
2.3 |
73.6 |
9460 |
|
6/10KV-3C240 |
3×240 |
3.4 |
3.4 |
2.5 |
80.2 |
11680 |
8.7/15kV
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
|
Inner |
Outer |
|||||
|
8.7/15KV-1C25 |
1×25 |
4.5 |
1.6 |
1.2 |
26.4 |
1030 |
|
8.7/15KV-1C35 |
1×35 |
4.5 |
1.6 |
1.2 |
27.6 |
1180 |
|
8.7/15KV-1C50 |
1×50 |
4.5 |
1.7 |
1.3 |
29.3 |
1370 |
|
8.7/15KV-C70 |
1×70 |
4.5 |
1.7 |
1.3 |
31.1 |
1650 |
|
8.7/15KV-1C95 |
1×95 |
4.5 |
1.8 |
1.4 |
33.4 |
2010 |
|
8.7/15KV-1C120 |
1×120 |
4.5 |
1.9 |
1.4 |
35.7 |
2410 |
|
8.7/15KV-1C150 |
1×150 |
4.5 |
1.9 |
1.5 |
37.5 |
2760 |
|
8.7/15KV-1C185 |
1×185 |
4.5 |
2.0 |
1.5 |
39.5 |
3200 |
|
8.7/15KV-1C240 |
1×240 |
4.5 |
2.1 |
1.6 |
42.6 |
3910 |
|
8.7/15KV-1C300 |
1×300 |
4.5 |
2.2 |
1.6 |
45.2 |
4610 |
|
8.7/15KV-1C400 |
1×400 |
4.5 |
2.3 |
1.7 |
49.0 |
5730 |
|
8.7/15KV-1C500 |
1×500 |
4.5 |
2.5 |
1.8 |
52.3 |
6740 |
|
8.7/15KV-1C630 |
1×630 |
4.5 |
2.6 |
1.9 |
56.9 |
8400 |
|
8.7/15KV-3C25 |
3×25 |
4.5 |
2.4 |
1.8 |
51.6 |
3300 |
|
8.7/15KV-3C35 |
3×35 |
4.5 |
2.5 |
1.9 |
54.6 |
3820 |
|
8.7/15KV-3C50 |
3×50 |
4.5 |
2.6 |
1.9 |
57.6 |
4400 |
|
8.7/15KV-3C70 |
3×70 |
4.5 |
2.8 |
2.0 |
62.1 |
5370 |
|
8.7/15KV-3C95 |
3×95 |
4.5 |
3.0 |
2.2 |
67.0 |
6550 |
|
8.7/15KV-3C120 |
3×120 |
4.5 |
3.1 |
2.3 |
70.8 |
7580 |
|
8.7/15KV-3C150 |
3×150 |
4.5 |
3.2 |
2.3 |
74.5 |
8680 |
|
8.7/15KV-3C185 |
3×185 |
4.5 |
3.4 |
2.5 |
79.2 |
10180 |
|
8.7/15KV-3C240 |
3×240 |
4.5 |
3.6 |
2.6 |
85.6 |
12420 |
