| Application | These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free. |
| Standards | IEC 60092-350/351/353/359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

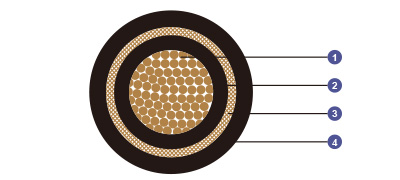

| Construction | |
| Conductors | Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request. |
| Insulation | XLPE |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). SHF2 can be offered upon request. |
| Core Identification | Single core: Black. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD Temperature Range: -30℃ ~ +80℃ |
Dimensions and Weight
Single Core Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
1C1.5 |
1×1.5 |
0.7 |
1.1 |
6.3 |
70 |
|
1C2.5 |
1×2.5 |
0.7 |
1.1 |
6.7 |
80 |
|
1C4 |
1×4 |
0.9 |
1.1 |
7.4 |
100 |
|
1C6 |
1×6 |
0.9 |
1.1 |
8.0 |
120 |
|
1C10 |
1×10 |
0.9 |
1.1 |
8.8 |
180 |
|
1C16 |
1×16 |
0.9 |
1.1 |
10.2 |
245 |
|
1C25 |
1×25 |
0.9 |
1.2 |
11.7 |
355 |
|
1C35 |
1×35 |
0.9 |
1.2 |
13.0 |
455 |
|
1C50 |
1×50 |
1.0 |
1.3 |
15.0 |
620 |
|
1C70 |
1×70 |
1.1 |
1.4 |
17.2 |
850 |
|
1C95 |
1×95 |
1.1 |
1.4 |
19.1 |
1115 |
|
1C120 |
1×120 |
1.2 |
1.5 |
21.1 |
1385 |
|
1C150 |
1×150 |
1.4 |
1.6 |
23.2 |
1690 |
|
1C185 |
1×185 |
1.6 |
1.6 |
25.5 |
2065 |
|
1C240 |
1×240 |
1.7 |
1.7 |
28.4 |
2640 |
|
1C300 |
1×300 |
1.8 |
1.8 |
31.3 |
3260 |
