| Application | These cables are used for fixed installations on ships and offshore units in all locations. These cables are flame retardant, low smoke & halogen free. |
| Standards | DIN 89160/98 IEC 60092-353 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

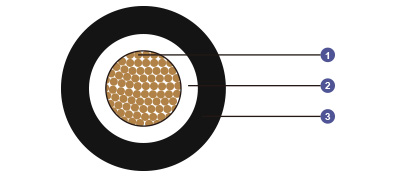

| Construction | |
| Conductors | Class 2 stranded copper conductor. |
| Insulation | HEPR. |
| Outer Sheath | LSOH (SHF1) |
| Core Identification | Single core: Natural colour (beige). |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm) Temperature Range: -20℃ ~ +75℃ |
Dimensions and Weight
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
M092/0.6/1KV--1G7H-R-1C4 |
1×4 |
0.7 |
1.2 |
6.5 |
80 |
|
M092/0.6/1KV--1G7H--R-1C6 |
1×6 |
0.7 |
1.2 |
7.5 |
110 |
|
M092/0.6/1KV--1G7H--R-1C10 |
1×10 |
0.7 |
1.2 |
8.5 |
150 |
|
M092/0.6/1KV--1G7H--R-1C16 |
1×16 |
0.7 |
1.2 |
9.5 |
220 |
|
M092/0.6/1KV--1G7H--R-1C25 |
1×25 |
0.9 |
1.2 |
11.0 |
320 |
|
M092/0.6/1KV--1G7H--R-1C35 |
1×35 |
0.9 |
1.2 |
12.0 |
420 |
|
M092/0.6/1KV--1G7H--R-1C50 |
1×50 |
1.0 |
1.3 |
13.5 |
560 |
|
M092/0.6/1KV--1G7H-R-1C70 |
1×70 |
1.1 |
1.3 |
15.5 |
780 |
|
M092/0.6/1KV--1G7H-R-1C95 |
1×95 |
1.1 |
1.4 |
17.8 |
1030 |
|
M092/0.6/1KV--1G7H-R-1C120 |
1×120 |
1.2 |
1.4 |
19.3 |
1290 |
|
M092/0.6/1KV--1G7H-R-1C150 |
1×150 |
1.4 |
1.5 |
21.3 |
1590 |
|
M092/0.6/1KV--1G7H-R-1C185 |
1×185 |
1.6 |
1.5 |
23.5 |
1960 |
|
M092/0.6/1KV--1G7H-R-1C240 |
1×240 |
1.7 |
1.6 |
26.5 |
2560 |
|
M092/0.6/1KV--1G7H-R-1C300 |
1×300 |
1.8 |
1.7 |
29.5 |
3200 |
