| Application | These unarmoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is not required. These cables are fire resistant, flame retardant, low smoke & halogen free. |
| Standards | IEC 60092-350/351/353/359 IEC 60331-21 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

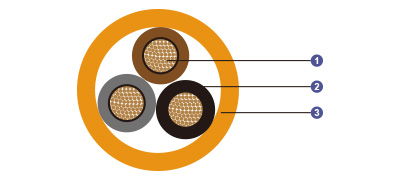

| Construction | |
| Conductors | Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request. |
| Insulation | Mica tape + XLPE. |
| Outer Sheath | LSOH (SHF1). SHF2 can be offered upon request. |
| Core Identification | Two cores: Blue, Brown. Three cores: Brown, Black, Grey. Four cores: Blue, Brown, Black, Grey. Five cores: Blue, Brown, Black, Grey, Black. Multi cores: White with black numbers. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm) Temperature Range: -30℃ ~ +80℃ |
Dimensions and Weight
Multicore 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
| Part No. | Construction No. of cores×Cross section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| M092-FR0.6/1KV-1M2XH-R-2C1.5 | 2×1.5 | 0.7 | 1.1 | 8.5 | 85 |
| M092-FR0.6/1KV-1M2XH-R-2C2.5 | 2×2.5 | 0.7 | 1.1 | 9.5 | 110 |
| M092-FR0.6/1KV-1M2XH-R-2C4 | 2×4 | 0.9 | 1.1 | 11.7 | 140 |
| M092-FR0.6/1KV-1M2XH-R-2C6 | 2×6 | 0.9 | 1.2 | 13.0 | 230 |
| M092-FR0.6/1KV-1M2XH-R-2C10 | 2×10 | 0.9 | 1.2 | 14.7 | 330 |
| M092-FR0.6/1KV-1M2XH-R-2C16 | 2×16 | 0.9 | 1.3 | 17.0 | 490 |
| M092-FR0.6/1KV-1M2XH-R-2C25 | 2×25 | 0.9 | 1.3 | 19.5 | 750 |
| M092-FR0.6/1KV-1M2XH-R-2C35 | 2×35 | 0.9 | 1.5 | 22.0 | 990 |
| M092-FR0.6/1KV-1M2XH-R-2C50 | 2×50 | 1.0 | 1.5 | 24.8 | 1340 |
| M092-FR0.6/1KV-1M2XH-R-3C1.5 | 3×1.5 | 0.7 | 1.1 | 9.5 | 105 |
| M092-FR0.6/1KV-1M2XH-R-3C2.5 | 3×2.5 | 0.7 | 1.1 | 10.0 | 145 |
| M092-FR0.6/1KV-1M2XH-R-3C4 | 3×4 | 0.9 | 1.2 | 12.7 | 205 |
| M092-FR0.6/1KV-1M2XH-R-3C6 | 3×6 | 0.9 | 1.2 | 13.9 | 270 |
| M092-FR0.6/1KV-1M2XH-R-3C10 | 3×10 | 0.9 | 1.3 | 15.9 | 400 |
| M092-FR0.6/1KV-1M2XH-R-3C16 | 3×16 | 0.9 | 1.3 | 18.4 | 610 |
| M092-FR0.6/1KV-1M2XH-R-3C25 | 3×25 | 0.9 | 1.5 | 21.4 | 920 |
| M092-FR0.6/1KV-1M2XH-R-3C35 | 3×35 | 0.9 | 1.6 | 24.2 | 1330 |
| M092-FR0.6/1KV-1M2XH-R-3C50 | 3×50 | 1.0 | 1.7 | 27.5 | 1830 |
| M092-FR0.6/1KV-1M2XH-R-3C70 | 3×70 | 1.1 | 1.8 | 32.0 | 2570 |
| M092-FR0.6/1KV-1M2XH-R-3C70S | 3×70 (sector shaped) | 1.1 | 1.8 | 27.5 | 2370 |
| M092-FR0.6/1KV-1M2XH-R-3C95 | 3×95 | 1.1 | 1.9 | 36.4 | 3360 |
| M092-FR0.6/1KV-1M2XH-R-3C95S | 3×95 (sector shaped) | 1.1 | 1.9 | 31.1 | 3130 |
| M092-FR0.6/1KV-1M2XH-R-3C120 | 3×120 | 1.2 | 2.1 | 40.7 | 4180 |
| M092-FR0.6/1KV-1M2XH-R-3C120S | 3×120 (sector shaped) | 1.2 | 2.1 | 34.4 | 3930 |
| M092-FR0.6/1KV-1M2XH-R-4C1.5 | 4×1.5 | 0.7 | 1.1 | 10.0 | 135 |
| M092-FR0.6/1KV-1M2XH-R-4C2.5 | 4×2.5 | 0.7 | 1.1 | 11.2 | 180 |
| M092-FR0.6/1KV-1M2XH-R-4C4 | 4×4 | 0.9 | 1.2 | 13.9 | 260 |
| M092-FR0.6/1KV-1M2XH-R-4C6 | 4×6 | 0.9 | 1.2 | 15.2 | 350 |
| M092-FR0.6/1KV-1M2XH-R-4C10 | 4×10 | 0.9 | 1.3 | 17.4 | 530 |
| M092-FR0.6/1KV-1M2XH-R-4C16 | 4×16 | 0.9 | 1.4 | 20.2 | 800 |
| M092-FR0.6/1KV-1M2XH-R-4C25 | 4×25 | 0.9 | 1.5 | 23.5 | 1230 |
| M092-FR0.6/1KV-1M2XH-R-4C35 | 4×35 | 0.9 | 1.7 | 26.7 | 1650 |
| M092-FR0.6/1KV-1M2XH-R-5C1.5 | 5×1.5 | 0.7 | 1.1 | 11.0 | 170 |
| M092-FR0.6/1KV-1M2XH-R-7C1.5 | 7×1.5 | 0.7 | 1.2 | 12.6 | 210 |
| M092-FR0.6/1KV-1M2XH-R-12C1.5 | 12×1.5 | 0.7 | 1.3 | 16.5 | 350 |
| M092-FR0.6/1KV-1M2XH-R-19C1.5 | 19×1.5 | 0.7 | 1.4 | 19.6 | 520 |
| M092-FR0.6/1KV-1M2XH-R-27C1.5 | 27×1.5 | 0.7 | 1.5 | 23.3 | 730 |
| M092-FR0.6/1KV-1M2XH-R-37C1.5 | 37×1.5 | 0.7 | 1.6 | 26.3 | 980 |
| M092-FR0.6/1KV-1M2XH-R-5C2.5 | 5×2.5 | 0.7 | 1.2 | 12.5 | 240 |
| M092-FR0.6/1KV-1M2XH-R-7C2.5 | 7×2.5 | 0.7 | 1.2 | 14.1 | 300 |
| M092-FR0.6/1KV-1M2XH-R-12C2.5 | 12×2.5 | 0.7 | 1.3 | 18.6 | 490 |
| M092-FR0.6/1KV-1M2XH-R-19C2.5 | 19×2.5 | 0.7 | 1.4 | 22.1 | 750 |
| M092-FR0.6/1KV-1M2XH-R-27C2.5 | 27×2.5 | 0.7 | 1.5 | 26.4 | 1060 |
