| Applications | These flat parallel cables are designed for use on ACmining equipment, such as A.C. shuttle cars, drills, cutting and loading machines |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

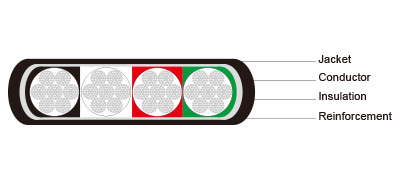

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Reinforcement | Synthetic yarn. |
| Jacket | Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
4×6 |
133 |
0.06 |
1.5 |
0.095 |
2.4 |
0.67×1.69 |
17.0×42.9 |
895 |
1332 |
72 |
|
4×4 |
259 |
0.06 |
1.5 |
0.110 |
2.8 |
0.75×1.89 |
19.0×48.0 |
1185 |
1764 |
93 |
|
4×2 |
259 |
0.06 |
1.5 |
0.110 |
2.8 |
0.84×2.23 |
20.6×56.6 |
1620 |
2411 |
122 |
|
4×1 |
259 |
0.08 |
2.0 |
0.125 |
3.2 |
0.97×2.60 |
24.6×66.0 |
2100 |
3125 |
143 |
|
4×1/0 |
259 |
0.08 |
2.0 |
0.140 |
3.6 |
1.01×2.73 |
25.7×69.3 |
2500 |
3721 |
165 |
|
4×2/0 |
329 |
0.08 |
2.0 |
0.140 |
3.6 |
1.10×2.96 |
27.9×75.2 |
2900 |
4316 |
192 |
|
4×3/0 |
413 |
0.08 |
2.0 |
0.155 |
3.9 |
1.18×3.25 |
30.0×82.6 |
3500 |
5209 |
221 |
|
4×4/0 |
532 |
0.08 |
2.0 |
0.155 |
3.9 |
1.29×3.46 |
32.8×87.9 |
4225 |
6288 |
255 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
