| Applications | These flat parallel cables are designed for use on ACmining equipment, such as A.C. shuttle cars, drills, cutting and loading machines. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

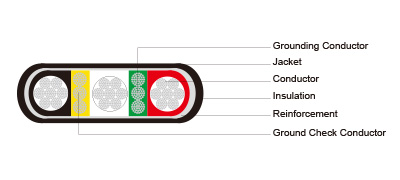

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Ground Check Conductor | Tinned copper conductor with a yellow insulation. |
| Grounding Conductor | Tinned copper conductor with an optional green outer covering. |
| Reinforcement | Synthetic yarn. |
| Jacket | Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter Height×Width |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×6 |
133 |
8 |
8 |
0.06 |
1.5 |
0.095 |
2.4 |
0.66×1.67 |
16.8×42.4 |
900 |
1340 |
79 |
|
3×4 |
259 |
7 |
8 |
0.06 |
1.5 |
0.095 |
2.4 |
0.72×1.87 |
18.3×47.5 |
1175 |
1750 |
104 |
|
3×3 |
259 |
6 |
6 |
0.06 |
1.5 |
0.110 |
2.8 |
0.78×2.08 |
19.8×52.8 |
1395 |
2080 |
120 |
|
3×2 |
259 |
5 |
6 |
0.06 |
1.5 |
0.110 |
2.8 |
0.85×2.23 |
21.6×56.6 |
1625 |
2415 |
138 |
|
3×1 |
259 |
4 |
6 |
0.08 |
2.0 |
0.125 |
3.2 |
0.96×2.50 |
24.4×63.5 |
2090 |
3110 |
161 |
|
3×1/0 |
259 |
3 |
5 |
0.08 |
2.0 |
0.140 |
3.6 |
1.01×2.67 |
25.6×67.8 |
2470 |
3675 |
186 |
|
3×2/0 |
329 |
2 |
5 |
0.08 |
2.0 |
0.140 |
3.6 |
1.09×2.86 |
27.7×68.1 |
2940 |
4375 |
215 |
|
3×3/0 |
413 |
1 |
5 |
0.08 |
2.0 |
0.155 |
3.9 |
1.18×3.12 |
30.0×79.2 |
3515 |
5230 |
249 |
|
3×4/0 |
532 |
1/0 |
5 |
0.08 |
2.0 |
0.155 |
3.9 |
1.24×3.30 |
31.5×83.8 |
4245 |
6315 |
287 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
