| Applications | These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor, and metallic shielding are required. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

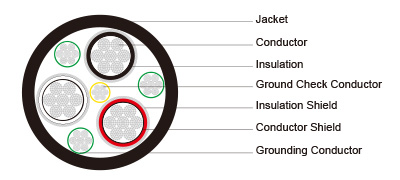

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Conductor Shield | Conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper with a yellow insulation, located in the center of the cable. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×2/0 |
323 |
5 |
16 |
0.11 |
2.8 |
0.220 |
5.6 |
2.20 |
55.9 |
3716 |
5529 |
243 |
|
3×3/0 |
418 |
4 |
16 |
0.11 |
2.8 |
0.235 |
6.0 |
2.36 |
59.9 |
4130 |
6145 |
279 |
|
3×4/0 |
532 |
3 |
16 |
0.11 |
2.8 |
0.235 |
6.0 |
2.50 |
63.5 |
5190 |
7722 |
321 |
|
3×350 |
888 |
1 |
16 |
0.12 |
3.0 |
0.265 |
6.7 |
2.95 |
74.9 |
7571 |
11264 |
435 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
