NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable VDE 0250 Part 813

NTSCGERLWOEU 3.66kV Flexible Submersible Cable

Applications These cables are used for permanent operation inwater where the cable is required to have additional mechanical protection.
Standards VDE 0250 Part 813

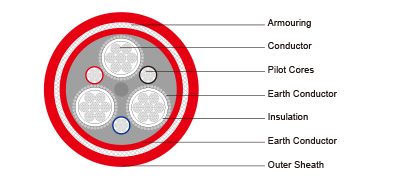

Construction
Conductors Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer Special rubber compound, conductive.
Insulation Rubbertype 3GI3.
Outer Conductor Layer Special rubber, conductive, easy strippable.
Pilot Cores (optional) Copper conductor with EPR insulation.
Earth Conductor Spiral of tinned annealed copper wires.
InnerSheath Waterproof synthetic butyl rubber.
Armouring Braid of galvanised steel strands.
Outer Sheath Rubber type 5GM5.

Dimensions and Weight

Number of Cores×Nominal Cross Section

Minimium Overall Diameter

Maximum Overall Diameter

Nominal Weight

No.×mm²

mm

mm

kg/km

3×35+3×16/3E

55.0

60.0

4600

3×50+3×25/3E

59.0

67.0

5600

3×70+3×35/3E

64.0

70.0

6700

3×95+3×50/3E

68.0

75.0

7900

3×120+3×70/3E

75.0

80.0

9980
