| Applications | These cables are used as power supply or connection cables for large material handling machines, e.g. excavators in open-cast mines subject to extremely high mechanical stresses. Particularly suitable for applications in which abrasion and chaffing stresses are to be expected in trailing operation. |
| Standards | VDE 0250 Part 813 |

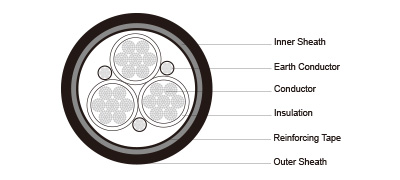

| Construction | |
| Conductors | Flexible strandedcopper conductor, class 5 according to DIN VDE 0295. |
| Inner Conductor Layer | Semiconductive layer. |
| Insulation | Rubber type 3GI3. |
| Outer Conductor Layer | Semiconductive layer. |
| Earth Conductor | Split into three in theouter interstices or Individual concentric distributed over core insulating coverings (coding…../3E). |
| Reinforcing Tape | Extremely tear-resistant reinforcing tape. |
| InnerSheath | Rubber type 5GM5, abrasion and tear resistant, oil and ozone resistant. |
| Outer Sheath | Rubber type 5GM5, abrasion and tear resistant, oil and ozone resistant, inseparably bonded with inner sheath. |
Dimensions and Weight
1.8/3kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+3×25/3 |
38.5 |
41.5 |
2470 |
|
3×35+3×25/3 |
42.9 |
45.9 |
3080 |
|
3×50+3×25/3 |
46.1 |
49.1 |
3750 |
|
3×70+3×35/3 |
49.7 |
53.7 |
4690 |
|
3×95+3×50/3 |
57.4 |
61.4 |
6210 |
|
3×120+3×70/3 |
61.2 |
65.2 |
7430 |
|
3×150+3×70/3 |
66.7 |
70.7 |
8900 |
|
3×185+3×95/3 |
70.6 |
74.6 |
10330 |
|
3×25+2×25/2+1×10ST |
40.3 |
44.3 |
2470 |
|
3×35+2×25/2+1×10ST |
42.9 |
46.9 |
3080 |
|
3×50+2×25/2+1×10ST |
46.8 |
50.8 |
3750 |
|
3×70+2×35/2+1×10ST |
51.5 |
55.5 |
4690 |
|
3×95+2×50/2+1×10ST |
57.4 |
62.4 |
6210 |
|
3×120+2×70/2+1×10ST |
63.6 |
68.6 |
7430 |
|
3×150+2×70/2+1×10ST |
67.2 |
72.2 |
8900 |
|
3×185+2×95/2+1×10ST |
70.2 |
75.2 |
10330 |
3.6/6kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+3×25/3 |
44.6 |
47.6 |
3080 |
|
3×35+3×25/3 |
47.6 |
50.6 |
3590 |
|
3×50+3×25/3 |
52.4 |
56.4 |
4520 |
|
3×70+3×35/3 |
56.3 |
60.3 |
5520 |
|
3×95+3×50/3 |
59.9 |
63.9 |
6580 |
|
3×120+3×70/3 |
65.6 |
69.6 |
8110 |
|
3×150+3×70/3 |
69.3 |
73.3 |
9320 |
|
3×185+3×95/3 |
73.2 |
77.2 |
10780 |
|
3×25+2×25/2+1×10ST |
45 |
49 |
3200 |
|
3×35+2×25/2+1×10ST |
47.6 |
51.6 |
3680 |
|
3×50+2×25/2+1×10ST |
53 |
57 |
4640 |
|
3×70+2×35/2+1×10ST |
56.2 |
60.2 |
5550 |
|
3×95+2×50/2+1×10ST |
61.8 |
66.8 |
6650 |
|
3×120+2×70/2+1×10ST |
66.1 |
71.1 |
8160 |
|
3×150+2×70/2+1×10ST |
69.8 |
74.8 |
9340 |
|
3×185+2×95/2+1×10ST |
74.6 |
79.6 |
10890 |
6/10 kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+3×25/3 |
46.4 |
49.4 |
3270 |
|
3×35+3×25/3 |
49.1 |
53.1 |
3800 |
|
3×50+3×25/3 |
54.1 |
58.1 |
4750 |
|
3×70+3×35/3 |
58 |
62 |
5750 |
|
3×95+3×50/3 |
61.7 |
65.7 |
6830 |
|
3×120+3×70/3 |
67.4 |
71.4 |
8380 |
|
3×150+3×70/3 |
71 |
75 |
9620 |
|
3×185+3×95/3 |
76.7 |
80.7 |
11430 |
|
3×25+2×25/2+1×10ST |
46.8 |
50.8 |
3410 |
|
3×35+2×25/2+1×10ST |
50.9 |
54.9 |
3890 |
|
3×50+2×25/2+1×10ST |
54.5 |
58.9 |
4860 |
|
3×70+2×35/2+1×10ST |
58 |
62 |
5780 |
|
3×95+2×50/2+1×10ST |
63.5 |
68.5 |
6920 |
|
3×120+2×70/2+1×10ST |
67.8 |
72.8 |
8450 |
|
3×150+2×70/2+1×10ST |
71.5 |
76.5 |
9620 |
|
3×185+2×95/2+1×10ST |
76.3 |
81.3 |
10980 |
8.7/15 kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+3×25/3 |
52.6 |
56.6 |
4040 |
|
3×35+3×25/3 |
55.6 |
59.6 |
4630 |
|
3×50+3×25/3 |
58.9 |
62.9 |
5370 |
|
3×70+3×35/3 |
64.5 |
68.5 |
6720 |
|
3×95+3×50/3 |
68.2 |
72.2 |
7850 |
|
3×120+3×70/3 |
72.1 |
76.1 |
9130 |
|
3×150+3×70/3 |
77.6 |
81.6 |
10750 |
|
3×185+3×95/3 |
81.5 |
85.5 |
12290 |
|
3×25+2×25/2+1×10ST |
53 |
57 |
4130 |
|
3×35+2×25/2+1×10ST |
55.6 |
59.6 |
4740 |
|
3×50+2×25/2+1×10ST |
59.3 |
63.3 |
5470 |
|
3×70+2×35/2+1×10ST |
64.6 |
68.6 |
6820 |
|
3×95+2×50/2+1×10ST |
68.3 |
73.3 |
7950 |
|
3×120+2×70/2+1×10ST |
74.4 |
79.4 |
9240 |
|
3×150+2×70/2+1×10ST |
78.1 |
83.1 |
10860 |
|
3×185+2×95/2+1×10ST |
81.1 |
86.1 |
12400 |
12/20 kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+3×25/3 |
56.9 |
60.9 |
4620 |
|
3×35+3×25/3 |
59.9 |
63.9 |
5220 |
|
3×50+3×25/3 |
65 |
69 |
6300 |
|
3×70+3×35/3 |
68.9 |
72.9 |
7410 |
|
3×95+3×50/3 |
72.5 |
76.5 |
8560 |
|
3×120+3×70/3 |
78.2 |
82.2 |
10260 |
|
3×150+3×70/3 |
81.9 |
85.9 |
11570 |
|
3×185+3×95/3 |
87.4 |
92.4 |
13530 |
|
3×25+2×25/2+1×10ST |
57.3 |
61.3 |
4770 |
|
3×35+2×25/2+1×10ST |
59.9 |
63.9 |
5340 |
|
3×50+2×25/2+1×10ST |
65.4 |
69.4 |
6460 |
|
3×70+2×35/2+1×10ST |
68.8 |
72.8 |
7450 |
|
3×95+2×50/2+1×10ST |
74.4 |
79.4 |
8680 |
|
3×120+2×70/2+1×10ST |
78.7 |
83.7 |
10370 |
|
3×150+2×70/2+1×10ST |
82.2 |
87.2 |
11650 |
|
3×185+2×95/2+1×10ST |
87 |
92 |
13090 |
14/25kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+2×25/2+1×10ST |
64.7 |
68.7 |
5940 |
|
3×35+2×25/2+1×10ST |
67.3 |
71.3 |
6470 |
|
3×50+2×25/2+1×10ST |
71 |
75 |
7300 |
|
3×70+2×35/2+1×10ST |
75.2 |
80.2 |
8800 |
|
3×95+2×50/2+1×10ST |
80 |
85 |
10050 |
|
3×120+2×70/2+1×10ST |
85.9 |
90.9 |
11470 |
|
3×150+2×70/2+1×10ST |
89.6 |
94.6 |
13210 |
|
3×185+2×95/2+1×10ST |
92.6 |
97.6 |
14860 |
18/30kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+3×25/3 |
69.5 |
73.5 |
6680 |
|
3×35+3×25/3 |
72.5 |
76.5 |
7380 |
|
3×50+3×25/3 |
77.6 |
81.6 |
8460 |
|
3×70+3×35/3 |
81.5 |
85.5 |
9690 |
|
3×95+3×50/3 |
84.9 |
89.9 |
10960 |
|
3×120+3×70/3 |
90.6 |
95.6 |
12830 |
|
3×150+3×70/3 |
94.3 |
99.3 |
14250 |
|
3×185+3×95/3 |
100 |
105 |
16390 |
|
3×25+2×25/2+1×10ST |
69.9 |
73.9 |
7100 |
|
3×35+2×25/2+1×10ST |
72.6 |
76.6 |
7540 |
|
3×50+2×25/2+1×10ST |
78 |
82 |
8680 |
|
3×70+2×35/2+1×10ST |
80.4 |
85.4 |
9760 |
|
3×95+2×50/2+1×10ST |
86.8 |
91.8 |
11100 |
|
3×120+2×70/2+1×10ST |
91.1 |
96.1 |
12980 |
|
3×150+2×70/2+1×10ST |
94.8 |
99.8 |
14350 |
|
3×185+2×95/2+1×10ST |
99.6 |
104.6 |
15870 |
