Underwater TV systems Composite Cable 300V 2x1.34mm2+3x0.22mm2+COAX75 OHM

06 April 2016

Underwater TV systems Composite Cable 300V

2x1.34mm2+3x0.22mm2+COAX75 OHM

Composite cable

Application
The cable contain coaxes, power conductors to allow cameras, lights and pan & tilt units to be powered,
controlled and video images carried to the surface. The cables all have Polyurethane outer jackets,
allowing them to be easily moulded to connectors to make underwater cable harness assemblies.
The composite cable for use in hostile marine environments



Product Details (Insulated Cores)

Component Description Cores
Number
Conductor
Stranding
Conductor Resistance
@ 20℃
[Ω/Km] Max.
Insulation
Resistance
@ 20℃
[MΩ/Km]Min.
1.34 sqmm insulated core 2 19/0.3mm TC 15.3 5000
0.22sqmm Insulated Core 3 7/0.2mm TC 96.2 5000
75 Ohm Mini coax 1 7/0.16mm TC 139 5000

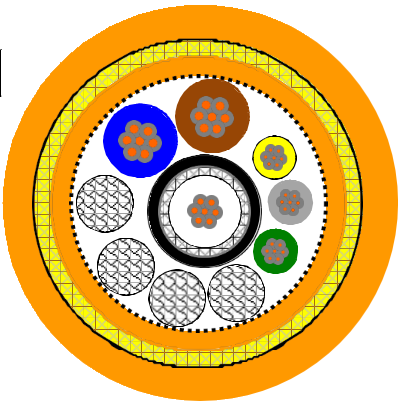

Construction
Part 1: 1.34mm2   2 Cores
1. Conductor: Tinned copper wire (TC)
2. Insulation: High density polyethylene(HDPE)
3. Insulation Diameter: 2.25mm
Color: Blue, Brown. Other color upon request.

Part 2: 0.22mm 2 3 Cores
1. Conductor: Tinned copper wire (TC)
2. Insulation: High density polyethylene(HDPE)
3. Insulation Diameter: 1.20mm
Color: Green, Yellow, Grey. Other color upon request.

Part 3: 75Ω Mini coax
1. Conductor: Tinned copper wire (TC)
2. Insulation: Cellular Polyethylene (Foam PE), Color: White
3. Dielectric diameter : 1.7mm
4. Overall shield: 0.1mm tinned copper braid shield ,coverage>95%
5. Sheath: High density polyethylene(HDPE)
Color: Black. Other color upon request



Part4: Cable Assembly (Part 1+Part2+Part3)
2x1.34mm2 cores, 3X0.22mm2 cores and 1 x 75Ohm mini coax laid together along with water
blocking swellable yarns to form circular profile.
Part 5: Protective tape: Polyester Tape 100% Coverage
Part6: Bedding Layer: Polyurethane.(PUR) Colour: Orange, other color upon request.
Thickness of Bedding layer: 1.2 mm nominal
Part7: Renforcement: Vectran yarn braid.
Part8: Outer Jacket: Polyurethane.(PUR). Colour: Orange, other color upon request.
Thickness of Outer Jacket: 1.5 mm nominal
Marking: UNDERWATER COMPOSITE TV SYSTEM CABLE 2x1.34+3x0.22+COAX75 OHM UNIVERSAL
YR2016 XXXXM. Other as per customer requirement on order.
Packing length: 1000m/Drum, or as per customer request.



Cable Properties:
Operating Temperature: -40℃C to +80℃

Overall Diameter: 13,5 mm ±1.0 mm
Weight in air: 260 kg/km nom.

Weight in seawater: 88kg/km nom.
Min. bending radius: 5X Diameter Static

Min. bending radius: 10X Diameter Dynamic
Depth rating: 5000m

Voltage: 300V
