| Applications | These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps and mobile equipment where grounding conductors, a ground check conductor and metallic shielding are required. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

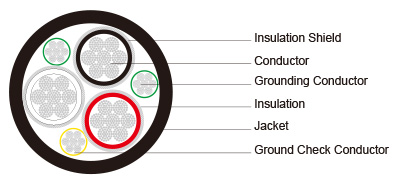

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Ground Check Conductor | Tinned copper with a yellow insulation, located in the center of the cable. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×6 |
133 |
10 |
10 |
0.07 |
1.8 |
0.155 |
3.9 |
1.29 |
32.8 |
1130 |
1682 |
93 |
|
3×4 |
259 |
8 |
10 |
0.07 |
1.8 |
0.155 |
3.9 |
1.40 |
35.6 |
1460 |
2173 |
122 |
|
3×3 |
259 |
7 |
10 |
0.07 |
1.8 |
0.170 |
4.3 |
1.51 |
38.3 |
1680 |
2500 |
140 |
|
3×2 |
259 |
6 |
10 |
0.07 |
1.8 |
0.170 |
4.3 |
1.59 |
40.4 |
1990 |
2961 |
159 |
|
3×1 |
259 |
5 |
8 |
0.08 |
2.0 |
0.190 |
4.8 |
1.76 |
44.7 |
2385 |
3549 |
184 |
|
3×1/0 |
266 |
4 |
8 |
0.08 |
2.0 |
0.190 |
4.8 |
1.86 |
47.2 |
2765 |
4115 |
211 |
|
3×2/0 |
329 |
3 |
8 |
0.08 |
2.0 |
0.205 |
5.2 |
2.00 |
50.8 |
3255 |
4844 |
243 |
|
3×3/0 |
418 |
2 |
8 |
0.08 |
2.0 |
0.205 |
5.2 |
2.13 |
54.1 |
3890 |
5789 |
279 |
|
3×4/0 |
532 |
1 |
8 |
0.08 |
2.0 |
0.220 |
5.6 |
2.31 |
58.7 |
4720 |
7024 |
321 |
|
3×250 |
627 |
1/0 |
6 |
0.095 |
2.4 |
0.220 |
5.6 |
2.51 |
63.8 |
5460 |
8125 |
355 |
|
3×300 |
741 |
1/0 |
6 |
0.095 |
2.4 |
0.235 |
6.0 |
2.68 |
68.1 |
6395 |
9517 |
398 |
|
3×350 |
888 |
2/0 |
6 |
0.095 |
2.4 |
0.235 |
6.0 |
2.81 |
71.4 |
7280 |
10834 |
435 |
|
3×500 |
1221 |
4/0 |
6 |
0.095 |
2.4 |
0.265 |
6.7 |
3.19 |
81.0 |
9820 |
14614 |
536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
