| Applications | These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors, three unshielded control conductors, and a grounding conductor are required. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

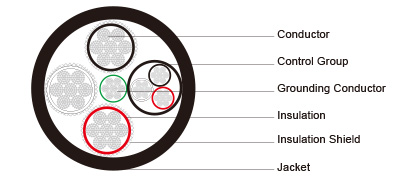

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Tinned copper/textile braid. |
| Control Group (3 Conductor) | Tinned copper conductor, EPR insulation and thermosetting jacket. Colour of insulation: Black, white and red. |
| Grounding Conductor | Tinned copper conductor, located in the center of the cable. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Control Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×1/0 |
259 |
3 |
8 |
0.08 |
2.0 |
0.205 |
5.2 |
2.05 |
52.1 |
3092 |
4602 |
211 |
|
3×2/0 |
329 |
2 |
8 |
0.08 |
2.0 |
0.220 |
5.6 |
2.25 |
57.1 |
3698 |
5503 |
243 |
|
3×3/0 |
413 |
1 |
8 |
0.08 |
2.0 |
0.220 |
5.6 |
2.32 |
58.9 |
4295 |
6392 |
279 |
|
3×4/0 |
532 |
1/0 |
8 |
0.08 |
2.0 |
0.250 |
6.3 |
2.62 |
66.5 |
5115 |
7612 |
321 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
