| Applications | Type 441 Class 1 series cable has lower insulation and sheath radials than Class 2 cables, designed for many uses, suitable for trailing and also suitable for reeling applications, have one central pilot and a semiconductive cradle supportingand protecting the power cores, which makes these cables less likely to be damaged from crushing and squashing. |
| Standards | AS/NZS 2802:2000 AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 |

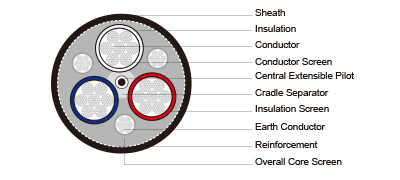

| Construction | |
| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Cradle Separator | Semiconductive PCP. |
| Overall Core Screen | Semiconductive PCP filling and covering. |
| 3×Interstitial Earth Conductor | Semiconductive PCP covered flexible stranded tinned copper conductor. |
| 1×Central Extensible Pilot | EPR covered flexible stranded tinned copper conductor. |
| TextileReinforcement | Open-weave braid reinforcement. |
| Sheath | Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
|
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Earth Conductor |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
||
|
Strand Size |
Thickness of Covering |
Strand Size |
Thickness of Covering |
||||||
|
mm² |
No/mm |
mm |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
|
Type 441.3 Class1 |
|||||||||
|
16 |
126/0.40 |
2.2 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
4.6 |
43.0 |
241 |
|
25 |
209/0.40 |
2.2 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
4.9 |
46.9 |
304 |
|
35 |
285/0.40 |
2.2 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.2 |
50.3 |
359 |
|
50 |
380/0.40 |
2.4 |
120/0.30 |
1.0 |
40/0.20 |
0.8 |
5.7 |
55.5 |
446 |
|
70 |
203/0.67 |
2.4 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
6.0 |
60.4 |
571 |
|
95 |
259/0.67 |
2.4 |
48/0.67 |
1.2 |
40/0.20 |
0.8 |
6.4 |
63.6 |
659 |
|
120 |
336/0.67 |
2.4 |
60/0.67 |
1.2 |
40/0.20 |
0.8 |
6.5 |
68.6 |
794 |
|
150 |
427/0.67 |
2.4 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
6.6 |
72.7 |
931 |
|
185 |
518/0.67 |
2.4 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
6.7 |
77.4 |
1080 |
|
240 |
672/0.67 |
2.4 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
6.9 |
83.4 |
1310 |
|
300 |
854/0.67 |
2.4 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
7.0 |
89.2 |
1570 |
|
Type 441.6 Class1 |
|||||||||
|
16 |
126/0.40 |
3.0 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.0 |
47.4 |
276 |
|
25 |
209/0.40 |
3.0 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.3 |
51.2 |
350 |
|
35 |
285/0.40 |
3.0 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.6 |
54.6 |
405 |
|
50 |
380/0.40 |
3.0 |
120/0.30 |
1.2 |
40/0.20 |
0.8 |
6.0 |
58.7 |
485 |
|
70 |
203/0.67 |
3.0 |
39/0.67 |
1.2 |
40/0.20 |
0.8 |
6.3 |
63.7 |
634 |
|
95 |
259/0.67 |
3.0 |
48/0.67 |
1.2 |
40/0.20 |
0.8 |
6.4 |
66.5 |
700 |
|
120 |
336/0.67 |
3.0 |
60/0.67 |
1.2 |
40/0.20 |
0.8 |
6.6 |
71.4 |
835 |
|
150 |
427/0.67 |
3.0 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
6.7 |
75.5 |
975 |
|
185 |
518/0.67 |
3.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
6.8 |
80.3 |
1130 |
|
240 |
672/0.67 |
3.0 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
7.0 |
86.2 |
1360 |
|
300 |
854/0.67 |
3.0 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
7.1 |
92.0 |
1650 |
|
Type 441.11 Class1 |
|||||||||
|
25 |
209/0.40 |
5.0 |
81/0.30 |
1.2 |
24/0.20 |
0.8 |
6.3 |
62.2 |
481 |
|
35 |
285/0.40 |
5.0 |
81/0.30 |
1.4 |
24/0.20 |
0.8 |
6.4 |
65.2 |
542 |
|
50 |
380/0.40 |
5.0 |
120/0.30 |
1.4 |
40/0.20 |
0.8 |
6.5 |
68.6 |
620 |
|
70 |
203/0.67 |
5.0 |
39/0.67 |
1.4 |
40/0.20 |
0.8 |
6.6 |
73.1 |
750 |
|
95 |
259/0.67 |
5.0 |
48/0.67 |
1.4 |
40/0.20 |
0.8 |
6.8 |
76.2 |
850 |
|
120 |
336/0.67 |
5.0 |
60/0.67 |
1.4 |
40/0.20 |
0.8 |
6.9 |
80.9 |
986 |
|
150 |
427/0.67 |
5.0 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
7.0 |
85.0 |
1129 |
|
185 |
518/0.67 |
5.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
7.1 |
89.6 |
1289 |
|
240 |
672/0.67 |
5.0 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
7.3 |
95.7 |
1539 |
|
Type 441.22 Class1 |
|||||||||
|
35 |
285/0.40 |
7.6 |
81/0.30 |
1.8 |
24/0.20 |
0.8 |
6.9 |
77.9 |
733 |
|
50 |
380/0.40 |
7.6 |
120/0.30 |
1.8 |
40/0.20 |
0.8 |
7.0 |
81.4 |
820 |
|
70 |
203/0.67 |
7.6 |
39/0.67 |
1.8 |
40/0.20 |
0.8 |
7.1 |
85.8 |
960 |
|
95 |
259/0.67 |
7.6 |
48/0.67 |
1.8 |
40/0.20 |
0.8 |
7.2 |
88.6 |
1070 |
|
120 |
336/0.67 |
7.6 |
60/0.67 |
1.8 |
40/0.20 |
0.8 |
7.3 |
93.4 |
1220 |
|
150 |
427/0.67 |
7.6 |
77/0.67 |
1.8 |
40/0.20 |
0.8 |
7.4 |
97.5 |
1380 |
|
185 |
518/0.67 |
7.6 |
91/0.67 |
1.8 |
40/0.20 |
0.8 |
7.6 |
102.4 |
1545 |
