| Applications | These cables are used for connection of large mobile equipment such asexcavators and spreaders, gantrycranes, etc., under very highmechanical loads,suitablefor motorised reeling on monospiralor level-wind reelers. |
| Standards | Based on VDE 0250 Part 813 |

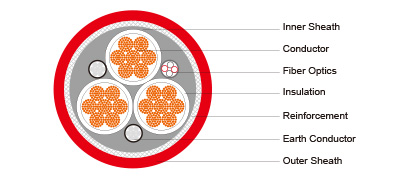

| Construction | |
| Conductors | Flexible strandedcopper conductor, class 5 according to DIN VDE 0295. |
| Inner Conductor Layer | Semiconductive layer. |
| Insulation | EPR type 3GI3. |
| Outer Conductor Layer | Semiconductive layer. |
| Earth Conductor | Split into two in the outer interstices. |
| InnerSheath | Rubber type GM1b/5GM3. |
| Reinforcement | Polyester anti-torsion braid. |
| Outer Sheath | Rubber type 5GM3/5GM5, flame retardant and oil resistant. |
Dimensions and Weight
3.6/6 kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+2×25/2+12×LWL |
39 |
42 |
2410 |
|
3×35+2×25/2+12×LWL |
42 |
45 |
2995 |
|
3×50+2×25/2+12×LWL |
45 |
48 |
3645 |
|
3×70+2×35/2+12×LWL |
50 |
54 |
4760 |
|
3×95+2×50/2+12×LWL |
54 |
58 |
5580 |
|
3×120+2×70/2+12×LWL |
58 |
62 |
6690 |
|
3×150+2×70/2+12×LWL |
63 |
67 |
7990 |
|
3×185+2×95/2+12×LWL |
67 |
72 |
9330 |
6/10 kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+2×25/2+12×LWL |
40 |
43 |
2450 |
|
3×35+2×25/2+12×LWL |
43 |
46 |
3035 |
|
3×50+2×25/2+12×LWL |
46 |
49 |
3690 |
|
3×70+2×35/2+12×LWL |
51 |
55 |
4800 |
|
3×95+2×50/2+12×LWL |
55 |
59 |
5620 |
|
3×120+2×70/2+12×LWL |
59 |
63 |
6740 |
|
3×150+2×70/2+12×LWL |
64 |
68 |
8040 |
|
3×185+2×95/2+12×LWL |
68 |
72 |
9380 |
12/20 kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+2×25/2+12×LWL |
46 |
49 |
3050 |
|
3×35+2×25/2+12×LWL |
49 |
52 |
3490 |
|
3×50+2×25/2+12×LWL |
53 |
57 |
4340 |
|
3×70+2×35/2+12×LWL |
57 |
61 |
5320 |
|
3×95+2×50/2+12×LWL |
61 |
65 |
6360 |
|
3×120+2×70/2+12×LWL |
67 |
71 |
7810 |
|
3×150+2×70/2+12×LWL |
70 |
74 |
8900 |
|
3×185+2×95/2+12×LWL |
76 |
80 |
10700 |
18/30 kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×25+2×25/2+12×LWL |
55 |
59 |
3960 |
|
3×35+2×25/2+12×LWL |
58 |
62 |
4550 |
|
3×50+2×25/2+12×LWL |
63 |
67 |
5510 |
|
3×70+2×35/2+12×LWL |
66 |
70 |
6560 |
|
3×95+2×50/2+12×LWL |
71 |
75 |
7850 |
|
3×120+2×70/2+12×LWL |
76 |
80 |
10690 |
|
3×185+2×95/2+12×LWL |
86 |
90 |
12550 |
